36502A10NJTDG - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC23823396
Category:
Inductor Surface Mount
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:

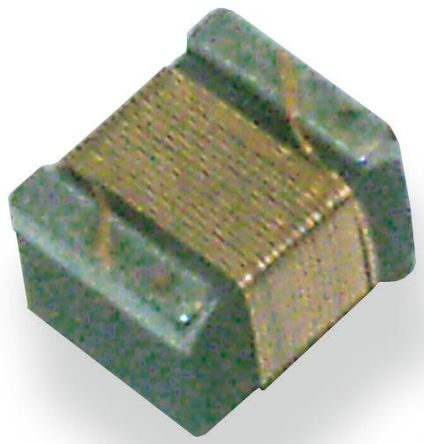

Inductor High Frequency Chip Unshielded Wirewound 10nH 5% 250MHz 60Q-Factor 600mA 100mOhm DCR 0805 T/R
Stock Locations:
Availability:
1,497 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.32

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 3650 Series is a new concept from Tyco Electronics, a range of inductors in values from 1 nH to 4.7 μH. The 3650 is available in four package sizes and is designed for automatic placement.
**Features:**
* Choice of Four Package Sizes
* Wire Wound Construction
* Smooth Top Aids Placement
* 1 nH to 4.7 μH Value Range
* Laboratory Design Kits Available
* High Q Factor
* High S.R.F.
* Standard Tolerances

Show

36502A10NJTDG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Current Rating	600 mA
Capacitance Tolerance	±5 %
Inductance	10 nH
Self Resonant Frequency	4.2 GHz
Q-Factor	60.0
Resistance	100 mΩ
Resonant Frequency	4.20 GHz
Shielding	No
Inductance Tolerance	±5 %
Test Frequency	250 MHz
DC Resistance (DCR)	≤100 mΩ
Current Rating (DC)	600 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.1 Ω
	Show
Size-Length	2.29 mm
Size-Width	1.73 mm
Size-Height	1.52 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
