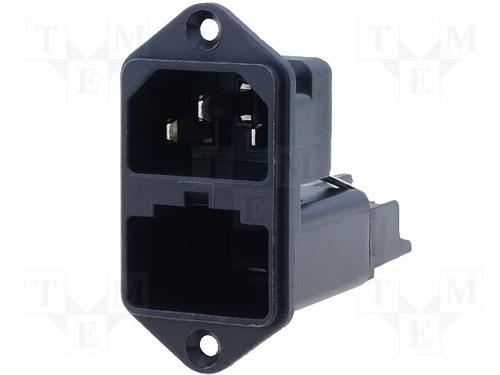

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DPST, 70 A (3-4 ms) switch in-rush current. Terminals are 4.8 mm × 0.8 mm quick-connect. Series 4303/KD also available with series voltage selection, call for part numbers. Order fingergrip fuse drawers separately below. Series 6431 and 6432 have individual component modules soldered on a PCB; DPST On/Off line switch; fully insulated from the rear. Terminals are quick-connect 6.3 mm × 0.8 mm. Series 6431 has inlet/outlet/switch configuration. Series 6432 has inlet/outlet fuseholder/(1-pole)/switch configuration. Series 6424 has inlet/1- or 2-pole fuseholder/switch.
4303.0001 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Panel, Quick Connect |
| Number of Contacts | 3 Contact |
| Gender | Male |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Current Rating | 15 A |
| Number of Positions | 3 Position |
| Current Rating (Max) | 10 A |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating (Max) | 250 VAC |
| Voltage Rating | 250 VAC |
| Voltage Rating (AC Max) | 250 V |
| Show | |
| Size-Length | 30 mm |
| Size-Width | 55 mm |
| Size-Height | 58 mm |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2016/06/20 |
| HTS Code | 8536698000 |
| ECCN Code | EAR99 |
