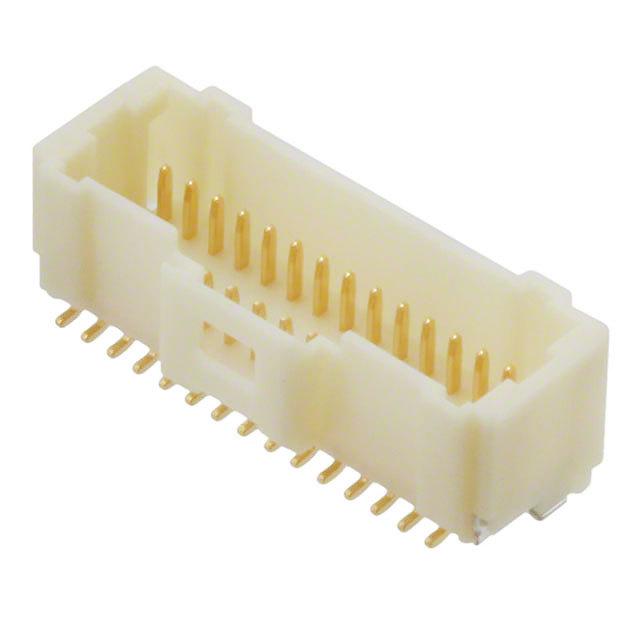

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Connector Header Surface Mount 30 position 0.039" (1.00mm)
5011903017 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | SMD |
| Pin Pitch | 1.00 mm |
| Number of Contacts | 30 Contact |
| Gender | Male |
| Contact Plating | Gold |
| Voltage Rating (DC) | 50.0 V |
| Current Rating | 1.00 A |
| Insulation Resistance | 100 MΩ |
| Number of Rows | 2 Row |
| Glow Wire Compliant | Non-Compliant |
| Halogen Free Status | Not Low Halogen |
| Orientation | Vertical |
| Number of Circuits | 30 Circuit |
| Number of Positions | 30 Position |
| Number of Mating Cycles | 30 Cycle |
| Current Rating (Max) | 1A/触头 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 50 V |
| Maximum Contact Resistance (Max) | 20 mΩ |
| Show | |
| Size-Height | 5.56 mm |
| Housing Color | Natural |
| Color | Natural |
| Contact Material | Phosphor Bronze |
| Operating Temperature | -40℃ ~ 85℃ |
| Housing Material | Thermoplastic |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
