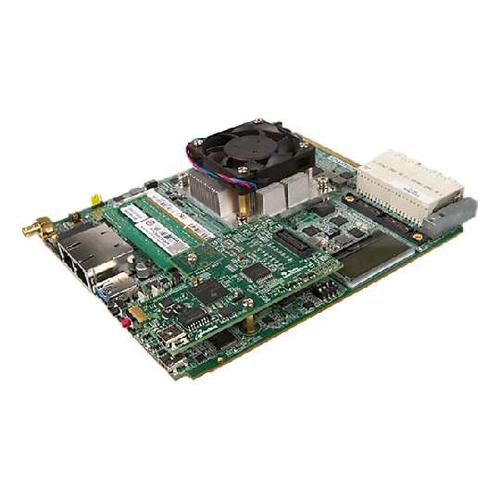

Image is for your reference only,please check specifications for details

EVMK2H - TI
Manufacturer:
TI
ManyChip's Part#:
MC69536761
Category:
Microprocessor Primary Platform
Package:
Module
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS EVMK2H Evaluation Board, 32Bit DSP, 28.4 GMACS/DSP & 10.2 GFLOPS/DSP Core at 1.2GHz
Stock Locations:
Availability:
4 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1134.39

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The EVMK2H is a 66AK2H evaluation module which is a robust development tool for embedded high performance compute systems. The EVM features a single 66AK2H14 System on Chip (SoC), LCD display and an onboard emulation to help developers quickly start designing in 66AK2H14, 66AK2H12 or 66AKH06 SOCs that support multiple ARM A15 and C66x DSP cores. The EVM is enabled with two 10GB Ethernet interfaces for a bandwidth of 20Gbps backplane connectivity and optional wire rate switching in high density systems. The software accompanying the K2H EVM includes the Code Composer Studio Integrated Development Environment version 5 (CCS v5), Multicore Software Development Kit (MCSDK) that includes the Board Support Package (BSP), Chip Support Library (CSL), Power On Self Test (POST), Network Development Kit (NDK), SYSBIOS and Out of Box (OOB) demonstration software.
Access to Serial RapidIO, XFI, CPRI, SGMII and Hyperlink Single Keystone 2 C66x multicore processor
2 GB ECC DDR3 onboard , 2 GB ECC DDR3 1333 SODIMM
512 MB NAND Flash, 128 Mb NOR Flash
1Mb I2C EEPROM for local boot (remote boot possible)
Dual 10/100/1000 Ethernet ports onboard
GPS Input
Micro SIM Connector
LCD Display
User programmable LED"s and DIP switches
60 pin JTAG emulator header
10GB adaptor card (sold separately) is needed to optically connect to the EVM.

Show

EVMK2H Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	Module
Number of Bits	32 Bit
Core Architecture	ARM
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Lead Free
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
