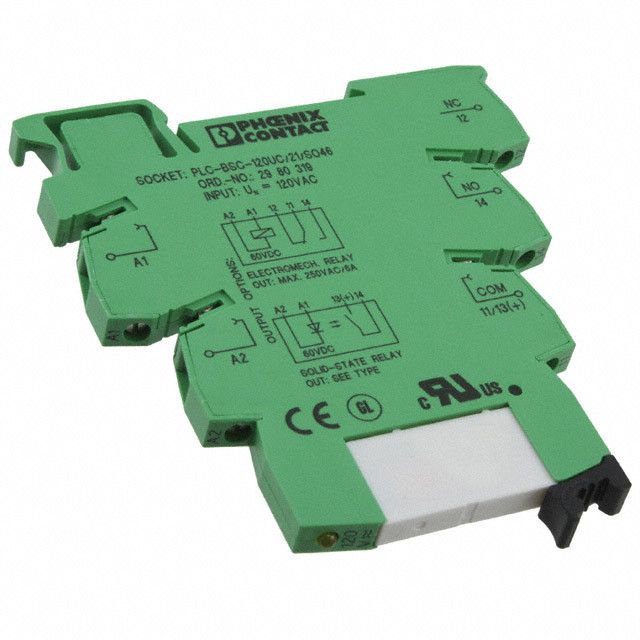

Image is for your reference only,please check specifications for details
Updated at 18/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Phoenix Contact PLC Series - Programmable Logic Relay System:**
- On the logic module market, the PLC logic relay system is the first to combine logic, interface, and field connection levels in a single solution. This means that you can switch and control I/O signals using a single compact system.You can combine the logic module with the corresponding relays and analog modules as required. The modular structure opens up a wealth of applications. You can flexibly extend the system, thanks to the wide choice of different modules. In addition to the basic module, extension modules are also available for more complex tasks. Eight freely-selectable PLC-INTERFACE terminal blocks are available for each logic module. Acquire and switch up to 48 I/O signals with one basic module and two extension modules.
- **Features:**
- * High availability, thanks to plug-in switching elements
- * Combine flexibly: assemble each channel individually as an input or output with relays or analog modules, depending on the application requirement
- * Efficient wiring, thanks to Push-in connection technology and special versions for the sensor or actuator wiring
- * Easy implementation of projects, thanks to intuitive software
- * Wireless operation and monitoring, by means of a Bluetooth adapter and PLC logic app
- **Components of the PLC Series - Programmable Logic Relay System:**
- **1) Basic module**
- PLC logic processes 16 I/O signals with just one basic module, with an overall width of just 50 mm.
- **2) Extension modules**The basic module and the extension module are connected via integrated connectors - no tools required.
- **3) Memory module**
- Save programs or easily copy them to other devices.
- **4) Relay and analog modules**
- The modular design with the widest variety of relay and analog modules enables channel-specific assembly.
- **5) PLC logic app**
- Easy and quick parameter adjustments and monitoring via app for iOS and Android. Thanks to the app and the corresponding Bluetooth adapter, you can access the process data quickly and wirelessly.
5603593 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | PCB |
| Case/Package | - |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Contacts Type | SPDT |
| Power Consumption | 140 W |
| Contact Current Rating | 6 A |
| Coil Voltage | 120VAC, 120VDC |
| Coil Current | 3.5 mA |
| Coil Voltage (AC) | 120 V |
| Input Power (Max) | 1.5 KVA |
| Voltage Rating | 250VAC, 250VDC |
| Show | |
| Size-Height | 80 mm |
| Contact Material | Silver Tin Oxide |
| Operating Temperature | -40℃ ~ 55℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
