Description

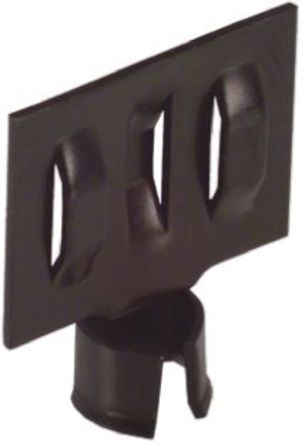

The 575200B00000G is a 18.29 x 15.29mm slip-on Heat Sink made of aluminum with black anodized finish. This board level heat sink features vertical mount orientation and is suitable for use with TO-92 device.

Show

575200B00000G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-92
Power Dissipation	0.3 W
Thermal Resistance	60 ℃/W
Thermal Resistance @ Forced Air Flow	17.5℃/W @400LFM
	Show
Size-Length	15.29 mm
Size-Width	15.29 mm
Size-Height	18.29 mm
Color	Black
Material	Aluminum
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
