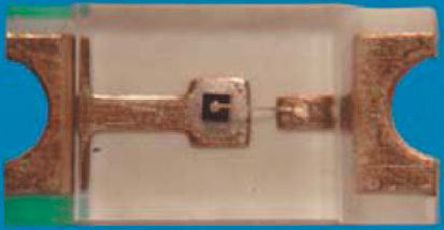

Image is for your reference only,please check specifications for details

5988110107F - Dialight
Manufacturer:
Dialight
ManyChip's Part#:
MC9959904
Category:
Based LED
Package:
0805
Datasheet:
Datasheet 3D Model
Description:
DIALIGHT 5988110107F LED, Red, SMD, 1.25mm x 1.4mm, 20mA, 2.2V, 642nm
Stock Locations:
Availability:
9,954 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.06

Updated at 23/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 5988110107F is a red surface mount LED made of AlInGaP LED technology. The Micro LED® SMD LED provides one of the industry wide ranges of discrete LED. It is compatible with infrared reflow processes and JEDEC standards. It helps to eliminate mixed technology PC board processing.
Non-diffused lens
260° for 10s Solder temperature
-30 to 85°C Operating temperature range

Show

5988110107F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Number of Positions	2 Position
Forward Voltage	2.2 V
Wavelength	642 nm
Luminous Intensity	40 mcd
Viewing Angle	140°
Lens Type	Non-Diffused
Test Current	20 mA
Forward Current	20 mA
	Show
Size-Length	2.00 mm
Size-Width	1.25 mm
Size-Height	0.70 mm
Color	Red
Lens Color	Red
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
