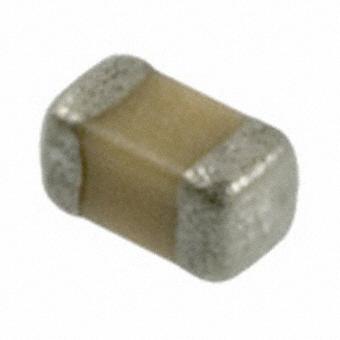

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AVX multilayer ceramic capacitors with EIA class II, X5R dielectric material are high capacitance ceramic chip capacitors used in general purpose applications. This multilayer ceramic capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of the ceramic dielectric. These capacitors are well suited for decoupling and filtering applications.
Capacitance value ranges from 100pF to 100µF
EIA 0101, 0201, 0402, 0603, 0805, 1206, 1210, 1812 case sizes available
Rated voltage of 4V, 6.3V, 10V, 16V, 25V, 35V, 50V, 100VDC
±10% and ±20% tolerance
Nickel and tin plated terminations
Operating temperature range from -55˚C to +85˚C

Show

04026D225KAT2A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1005
Case/Package	0402
Voltage Rating (DC)	6.30 V
Insulation Resistance	10 GΩ
Capacitance	2.2 µF
Capacitance Tolerance	±10 %
Dielectric Characteristic	X5R
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	6.3 V
	Show
Size-Length	1 mm
Size-Width	0.5 mm
Size-Height	0.56 mm
Material	X5R/-55℃~+85℃
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	10000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
