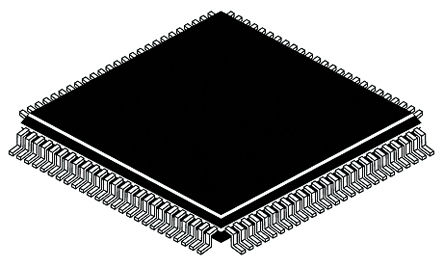

Image is for your reference only,please check specifications for details

5M570ZT100C5N - Altera
Manufacturer:
Altera
ManyChip's Part#:
MC26854500
Category:
CPLD chip
Package:
TQFP-100
Datasheet:
Datasheet 3D Model
Description:
Flash PLD, 17.7ns, 440-Cell, CMOS, PQFP100, 16 X 16MM, 0.5MM PITCH, LEAD FREE, TQFP-100
Stock Locations:
Availability:
44 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.62

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 5M570ZT100C5N is a surface mount Flash Complex Programmable Logic Device IC with 570 logic elements. The MAX® V low power CPLDs offer more density and I/Os per footprint versus other CPLDs. MAX® V device features on-chip flash storage, internal oscillator and memory functionality. With up to 50% lower total power versus other CPLDs and requiring as few as one power supply. The CPLDs standby current is as low as 25µA and fast power-down/reset operation. User flash memory block up to 8kb for non-volatile storage with up to 1000 read/write cycles.
Instant-on (0.5ms or less) configuration time
Fast propagation delay and clock-to-output times
Internal oscillator
Emulated RSDS output support with a data rate of up to 200Mbps
Emulated LVDS output support with a data rate of up to 304Mbps
Schmitt triggers enabling noise tolerant inputs
ESD sensitive device, take proper precaution while handling the device.

Show

5M570ZT100C5N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	TQFP-100
Frequency	118.3 MHz
Number of Positions	100 Position
Number of Inputs and Outputs	74 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	1.8 V
Supply Voltage (Max)	1.89 V
Supply Voltage (Min)	1.71 V
	Show
Size-Length	14 mm
Size-Width	14 mm
Size-Height	1.05 mm
Operating Temperature	0℃ ~ 85℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
