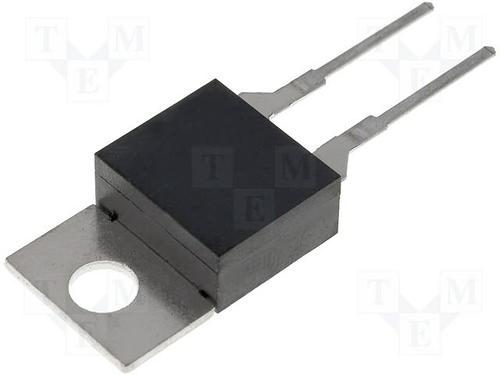

Image is for your reference only,please check specifications for details

67L110 - Sensata Technologies
Manufacturer:
Sensata Technologies
ManyChip's Part#:
MC12027796
Category:
Temperature Sensor
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
Single Trip Point Switch/Digital Sensor, Rectangular, Through Hole Mount, ROHS COMPLIANT, PACKAGE-2
Stock Locations:
Availability:
1,833 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.35

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 67L110 is a 2-pin Subminiature Bimetal Disc Thermostat with PPS (polyphenylene sulphide) base, positive snap action, NC (SPST) gold-plated contact, limit (open on rise) contact operation and standard nickel-plated copper bracket. This 6700 series thermostat provides accurate and reliable sensing and switching in a single device. It also provides fast, positive response with excellent repeatability. Thermal conductivity is mainly through the terminals and the mounting bracket. Used in turning on an indicator light, sounding an audible alarm, switch on a control circuit to send a message to a display screen or even switching a circuit to shut down a system. Ideal for surface and air sensing on PC boards and heat sinks.
Automatically resetting thermal switches
High temperature epoxy sealed
Chemical resistance to water, salt, alcohol, ammonia, trichloroethane & most other organic solvents
40 to 130°C Operating temperature range
UL94V-0 Flammability rating

Show

67L110 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Contacts Type	SPST-NC
Current Rating (Max)	1 A
Current Rating (DC)	0.5A @48V
Operating Temperature (Max)	130 ℃
Operating Temperature (Min)	40 ℃
Maximum Contact Resistance (Max)	50 mΩ
	Show
Color	Black
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
