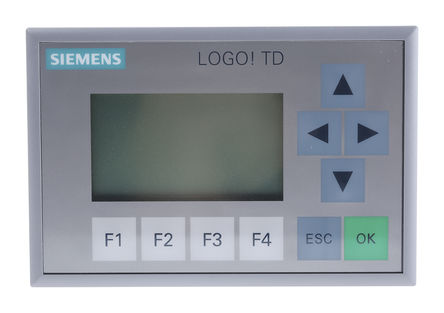

Image is for your reference only,please check specifications for details

6ED10554MH000BA0 - Siemens Semiconductor
Manufacturer:
Siemens Semiconductor
ManyChip's Part#:
MC347621942
Category:
Industrial Control
Datasheet:
Datasheet 3D Model
Description:
LOGO! TD Text Display, 4-Lines, w/cable(2.5m) and Mounting Accessories
Stock Locations:
Availability:
5 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 183.17

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**LOGO! — The Leading Logic Module for Micro Automation:**
Simple installation, minimum wiring, easy programming: That’s LOGO!, the intelligent logic module from Siemens. The logo control system is perfectly suited for small-scale automation projects and makes life much easier by replacing many time switches and relays, counters and protective relays. Discover the benefits of this unique turnkey logo control logic module control solution for yourself.
**LOGO! SoftComfort Overview:**
LOGO! from Siemens offers you the support you need at a price you can afford. Perform small-scale automation tasks more quickly and free up space in your switch cabinet. With 8 basic logic functions and 31 special functions, the LOGO! logic module can replace a large number of conventional switching and control devices. The natural logic module choice: LOGO! now is even more versatile for analog value applications and simple control tasks.
**Line-Up Overview:**
With the logic module LOGO! Siemens offers you the ideal controller for simple automation tasks in industry and building services.The consistently modular design of LOGO! makes it extremely flexible. A wide range of modules allows individual expansion of LOGO! to 24 digital inputs, 16 digital outputs, 8 analog inputs and 2 analog outputs! Communication modules are also available for AS-Interface and KNX (Instabus network for building automation). Now it is also possible to use the analog output module to solve simple closed-loop control tasks. Heating and cooling systems can be designed with the RTD PT100 module using special functions for PI control, ramp response and analog multiplexer. LOGO! exists in the version LOGO! Basic with integrated display and in the version LOGO! Pure without display.
**HMI Text Display Overview:**
Introducing the new remote LOGO! TD text display, the newest accessory for the line of LOGO! products. The LOGO! TD provides an affordable interface for equipment builders and their customers, even for simple relay switching systems. Adjustments and troubleshooting alarms are easily handled using the LOGO! TD with built-in operator functions and diagnostics. The expansion and communications modules, as well as programs from earlier LOGO! generations are compatible when upgrading to the new Basic or Pure logic module to be able to utilize the LOGO! TD.
**Features:**
* Shipped with Interface Cable for Connection to Any 0BA6 Base Module
* Polarity Independent Power Supply Socket for 12 VDC or 24 V AC/DC
* Contrast and Backlight Control
* Identical Display as a Base Module “Basic” Variant or Independent Message Text Displays
* IP65 when Correctly Panel-Mounted
* 6 Tactile Input Buttons Identical to the Base Module “Basic” Variant
* 4 Additional Function Input Buttons for Inputs Directly Into the Program Code
* Easily Configured with the Message Text Function Block in the Program Code
* Supports the Same 10 Menu Languages and Associated Character Sets as the “Basic”’ Base Module

Show

6ED10554MH000BA0 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Operating Temperature (Max)	55 ℃
Operating Temperature (Min)	0 ℃
Voltage Rating	24 VAC
Supply Voltage	20VDC ~ 28VDC
	Show
Size-Length	2.5 m
Size-Width	128.2 mm
Operating Temperature	0℃ ~ 55℃
