X9C102SZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC28729242
Category:
Digital Potentiometer IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:

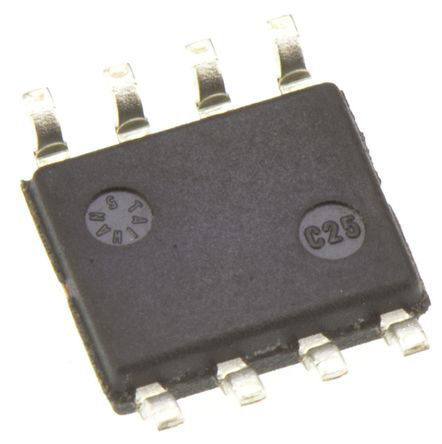

X9C102SZ, Digital Potentiometer 1K 100Position Linear Serial-3 Wire 8Pin SOIC
Stock Locations:
Availability:
200 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.66

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The X9C102SZ is a Digitally Controlled Potentiometer consists of a resistor array, wiper switches, a control section and non-volatile memory. The wiper position is controlled by a three-wire interface. The potentiometer is implemented by a resistor array composed of 99 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The position of the wiper element is controlled by the CS, U/D and INC inputs. The position of the wiper can be stored in non-volatile memory and then be recalled upon a subsequent power-up operation. The device can be used as a three-terminal potentiometer or as a two-terminal variable resistor in a wide variety of applications.
Solid-state potentiometer
99 Resistive elements - Temperature compensated
Low power CMOS - 3mA Maximum active current and 750µA maximum standby current
High reliability - 100000 Data changes per bit endurance

Show

X9C102SZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	4.50V (min)
Capacitance Tolerance	±20 %
Power Rating	16.0 mW
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Resistance	1 kΩ
Resistance Tolerance	±20 %
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	0℃ ~ 70℃
Temperature Coefficient	±600 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
