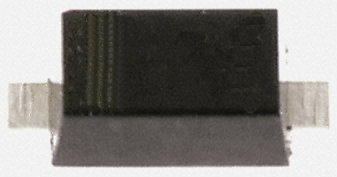

Image is for your reference only,please check specifications for details

DB2730900L - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC41132264
Category:
Schottky Diode
Package:
SSSMini2-F4-B
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRONIC COMPONENTS DB2730900L Small Signal Schottky Diode, Single, 30V, 100mA, 580mV, 1A, 125℃
Stock Locations:
Availability:
10,763 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.33

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

DB2730900L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SSSMini2-F4-B
Number of Positions	2 Position
Forward Voltage	580mV @100mA
Reverse recovery time	1 ns
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	580 mV
Forward Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	125℃ (Max)
	Show
Size-Length	1 mm
Size-Width	0.6 mm
Size-Height	0.52 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
