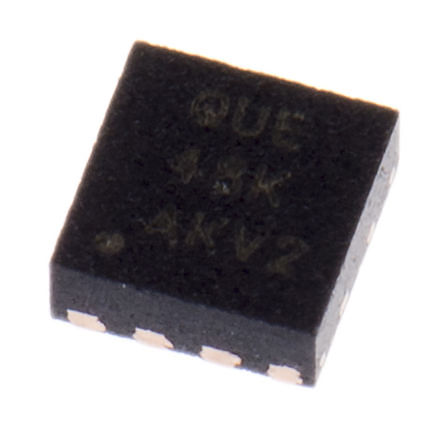

Image is for your reference only,please check specifications for details

TPS7A1601DRBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC32093633
Category:
Voltage Regulator
Package:
SON-8
Datasheet:
Datasheet 3D Model
Description:
LDO Voltage Regulator, Adjustable, 3V to 60V in, 265mV drop, 1.2V to 18.5V/0.1A out, SON-8
Stock Locations:
Availability:
256 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.21

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS7A1601DRBT is an ultralow power low-dropout (LDO) Voltage Regulator offers the benefits of ultra-low quiescent current, high input voltage. It is designed for continuous or sporadic battery-powered applications where ultralow quiescent current is critical to extending system battery life. It also offers an enable pin compatible with standard CMOS logic and an integrated open drain active-high power good output with a user-programmable delay. These pins are intended for use in microcontroller-based, battery-powered applications where power-rail sequencing is required. In addition, the device is ideal for generating a low-voltage supply from multi-cell solutions ranging from high cell-count power-tool packs to automotive applications, not only can this device supply a well-regulated voltage rail, but it can also withstand and maintain regulation during voltage transients. These features translate to simpler and more cost-effective, electrical surge-protection circuitry.
Power-good with programmable delay
Current limit and thermal shutdown protections
Stable with >=2.2µF ceramic output capacitors
2% Accuracy
Green product and no Sb/Br

Show

TPS7A1601DRBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SON-8
Number of Outputs	1 Output
Output Voltage	1.2V ~ 18.5V
Output Current	100 mA
Supply Current	15 µA
Number of Positions	8 Position
Quiescent Current	5 µA
Output Capacitor Type	Ceramic
voltage rating	265 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	60 V
Input Voltage (Min)	3 V
Output Voltage (Max)	18.5 V
Output Voltage (Min)	1.2 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	3V ~ 60V
	Show
Size-Length	3.15 mm
Size-Width	3.15 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
