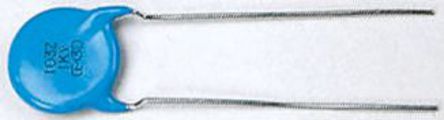

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DHR4E4A101K2BB is a high voltage Ceramic Capacitor with radial leaded terminals, straight long lead. This capacitor features ±10% capacitive tolerance, 9.5mm lead spacing and N4700 dielectric characteristic.
-4700 ±1000ppm/°C Temperature coefficient

Show

DHR4E4A101K2BB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, Disc
Pin Pitch	9.5 mm
Voltage Rating (DC)	10.0 kV
Capacitance	100 pF
Capacitance Tolerance	±10 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	10 kV
	Show
Size-Length	8 mm
Size-Width	7 mm
Size-Height	7.3 mm
Size-Diameter	Φ8.0mm
Size-Thickness	7 mm
Material	ZM
Operating Temperature	-20℃ ~ 85℃
Product Lifecycle Status	End of Life
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
