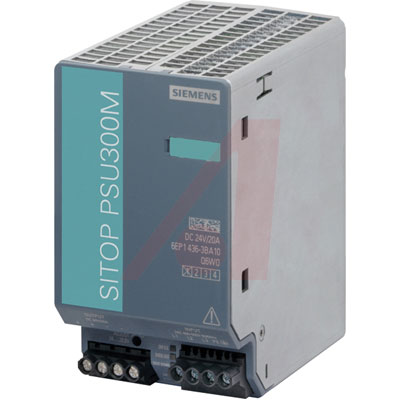

Image is for your reference only,please check specifications for details

6EP14363BA10 - Siemens Semiconductor
Manufacturer:
Siemens Semiconductor
ManyChip's Part#:
MC422830044
Category:
AC to DC Converter, AC/DC Converter
Datasheet:
Datasheet 3D Model
Description:
Power Supply; AC-DC; 24V@20A; 320-575V In; Enclosed; DIN Rail Mount; SITOP Modular
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

SITOP modular meets the highest requirements for functionality, e. g. for use in complex plants and machines. The wide input voltage range enables connection to any system in the world and guarantees a high level of safety even in the event of large voltage fluctuations. The power boost function briefly supplies up to three times the rated current. In the case of an overload, you can choose between constant current with automatic restart, or user directed restart.
* 48 VDC/10 A and 20 A Enables Small Cable Cross-Sections
* Compact Metal Housing
* No Installation Clearances Required at the Sides
* Wide Input Voltage Range
* Extra Power for Brief Operational Overload
* Power Boost for Triggering Protective Equipment
* Selectable Short-Circuit Characteristics
* Soft Characteristic Curve Selectable for Parallel Switching and Load Sharing
* High Efficiency
* Operating Status Indicated by 3 LEDs
* Can Be Combined with SITOP Power Security Components and DC UPS
* –25 to 60°C Ambient Temperate Range
* Setting Range 24 to 28.8 VDC for 24 VDC Output Voltages and 42 to 56 VDC for 48 VDC Output Voltages
* Certifications: CE, cULus, SEMI F47(for 24 VDC Single and Three Phase), ABS, GL
* Efficiencies from 87% to 93%
* Power Boost: 3× Rated Output Current for 25 ms
* Extra Power: 1.5× Rated Output Current for 5 s/Min.

Show

6EP14363BA10 Specifications
