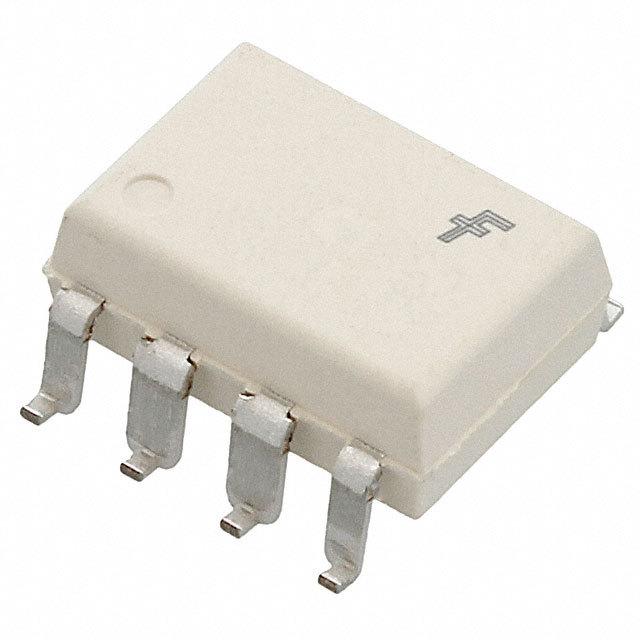

Image is for your reference only,please check specifications for details
- 6N136SD - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC109997808
-
Category:Optocoupler, Optoisolator
-
Package:SMD-8
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler DC-IN 1CH Transistor With Base DC-OUT 8Pin PDIP SMD Black T/R
-
Stock Locations:
-
Availability:1,183 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.68
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The HCPL-4502/HCPL-2503, 6N135/6 and HCPL-2530/HCPL-2531 optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor.
- A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocouplers by reducing the base-collector capacitance of the input transistor.
- An internal noise shield provides superior common mode rejection of 10kV/µs. An improved package allows superior insulation permitting a 480 V working voltage compared to industry standard of 220 V.
- Features
- ■ High speed-1 MBit/s
- ■ Superior CMR-10 kV/µs
- ■ Dual-Channel HCPL-2530/HCPL-2531
- ■ Double working voltage-480V RMS
- ■ CTR guaranteed 0-70°C
- ■ U.L. recognized (File # E90700)
- Applications
- ■ Line receivers
- ■ Pulse transformer replacement
- ■ Output interface to CMOS-LSTTL-TTL
- ■ Wide bandwidth analog coupling
6N136SD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SMD-8 |
| Input Voltage (DC) | 1.45 V |
| Output Voltage | 20.0 V |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.45 V |
| Input Current | 25.0 mA |
| Power Dissipation | 100/chmW |
| Data Rate | 1.00 Mbps |
| Isolation Voltage | 2500 Vrms |
| Forward Current | 25 mA |
| Output Voltage (Max) | 20 V |
| Maximum Forward Voltage (Max) | 1.7 V |
| Forward Current (Max) | 25 mA |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Height | 3.94 mm |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
