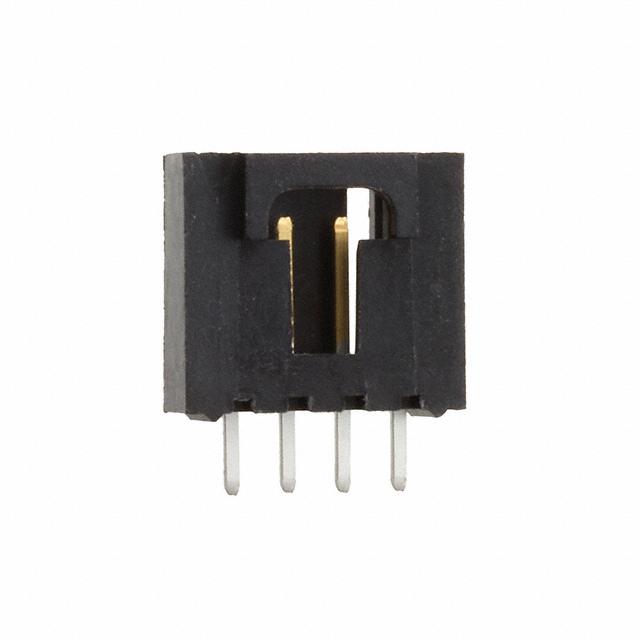

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

705430003 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Through Hole
Pin Pitch	2.54 mm
Number of Contacts	4 Contact
Gender	Male
Contact Plating	Gold
Current Rating	3.00 A
Number of Rows	01 Row
Glow Wire Compliant	Non-Compliant
Halogen Free Status	Not Low Halogen
Orientation	Vertical
Number of Circuits	4 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	4 Position
Current Rating (Max)	3A/触头
Maximum Contact Resistance (Max)	30 mΩ
	Show
Size-Length	12.7 mm
Size-Width	5.08 mm
Size-Height	11.81 mm
Housing Color	Black
Contact Material	Phosphor Bronze
Material	Brass
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
