Description

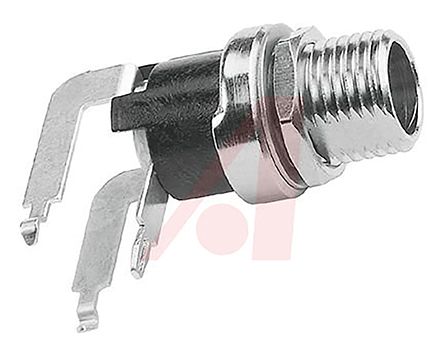

The 712RA is a right angle PC Mount DC Locking Power Jack with 0.1-inch diameter pin. It has moulded plastic housing, plated copper alloy mounting bushing and a rigid plastic insulator. The new versions have threaded bushings to allow use of both standard and locking power plugs.
For PC mounting
Kinked terminals allow snap-in PC board mounting
Automatic switch over from AC to DC permitted by sleeve shunt spring
Split centre pin shaped to hold mating plug firmly

Show

712RA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	100
Number of Contacts	3 Contact
Gender	Female
Voltage Rating (DC)	12.0 V
Current Rating	5 A
Insulation Resistance	1000 MΩ
Number of Mating Cycles	10000 Cycle
Current Rating (Max)	5 A
Voltage Rating (Max)	12 VDC
Voltage Rating	12 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	19.5 mm
Color	Black
Contact Material	Copper Alloy
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8536694050
ECCN Code	EAR99
