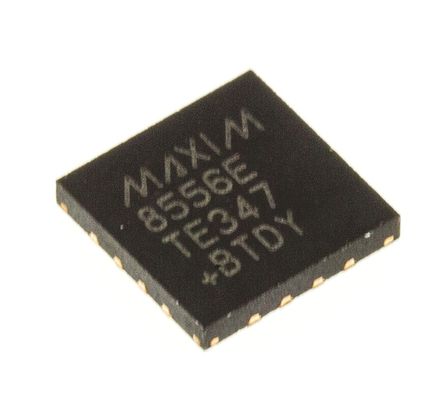

MAX8556ETE+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC17759400
Category:
Voltage Regulator
Package:
TQFN-16
Datasheet:
Datasheet 3D Model
Description:
MAXIM INTEGRATED PRODUCTS MAX8556ETE+. LDO Voltage Regulator, Adjustable, 1.425V to 4.6V in, 100mV drop, 500mV to 3.4V/4A out, TQFN-16
Stock Locations:
Availability:
263 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.52

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MAX8556ETE+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TQFN-16
Power Rating	2.6667 W
Number of Outputs	1 Output
Input Voltage (DC)	3.60V (max)
Output Voltage	0.5V ~ 3.4V
Output Current	4 A
Supply Current	1.6 mA
Number of Positions	16 Position
Power Dissipation	2666.7 mW
Quiescent Current	0.8 mA
voltage rating	100 mV
Input Voltage (Max)	3.6 V
Input Voltage (Min)	1.425 V
Output Voltage (Max)	3.4 V
Output Voltage (Min)	500 mV
Output Current (Max)	4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2666.7 mW
Accuracy	±1 %
Input Voltage	1.43V ~ 3.6V
	Show
Size-Length	5.1 mm
Size-Width	5.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
