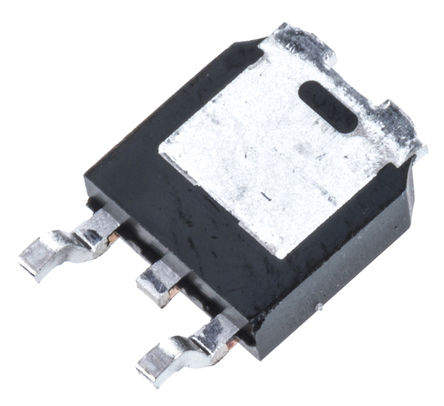

Image is for your reference only,please check specifications for details

LD1086DT33TR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC75383
Category:
Voltage Regulator
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS LD1086DT33TR Fixed LDO Voltage Regulator, 6.3V to 30V, 1.3V Dropout, 3.3Vout, 1.5Aout, TO-252-3
Stock Locations:
Availability:
112 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.96

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LD1086DT33TR is an adjustable and fixed low drop Positive Voltage Regulator with 3.3V output voltage, it is capable of providing up to 1.5A of output current. Dropout is guaranteed at a maximum of 1.2V at the maximum output current, decreasing at lower loads. This is pin-to-pin compatible with older 3-terminal adjustable regulator, but has better performance in terms of drop and output tolerance. Unlike PNP regulators, where a part of the output current is wasted as quiescent current, the quiescent current flows into the load, increasing efficiency. Only a 10µF (minimum) capacitor is needed for stability. On-chip trimming allows the regulator to reach a very tight output voltage tolerance, within ±1% at 25°C. The PAT, SYL, SBL statistical tests have been performed and the device is qualified according to the AEC-Q100 specification for the automotive market in the temperature range of -40 to 125°C.
Internal power and thermal limit
-40 to 125°C Wide operating temperature range
Pin out compatibility with standard adjustable voltage regulators

Show

LD1086DT33TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Supply Voltage (DC)	30.0V (max)
Operating Voltage	4.9V ~ 18V
Number of Outputs	1 Output
Input Voltage (DC)	30.0V (max)
Output Voltage	3.3 V
Output Current	1.5 A
Number of Positions	3 Position
Quiescent Current	10 mA
voltage rating	1.3 V
Input Voltage (Max)	30 V
Input Voltage (Min)	6.3 V
Output Voltage (Min)	3.3 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	≤30 V
	Show
Size-Length	6.6 mm
Size-Width	6.2 mm
Size-Height	2.4 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
