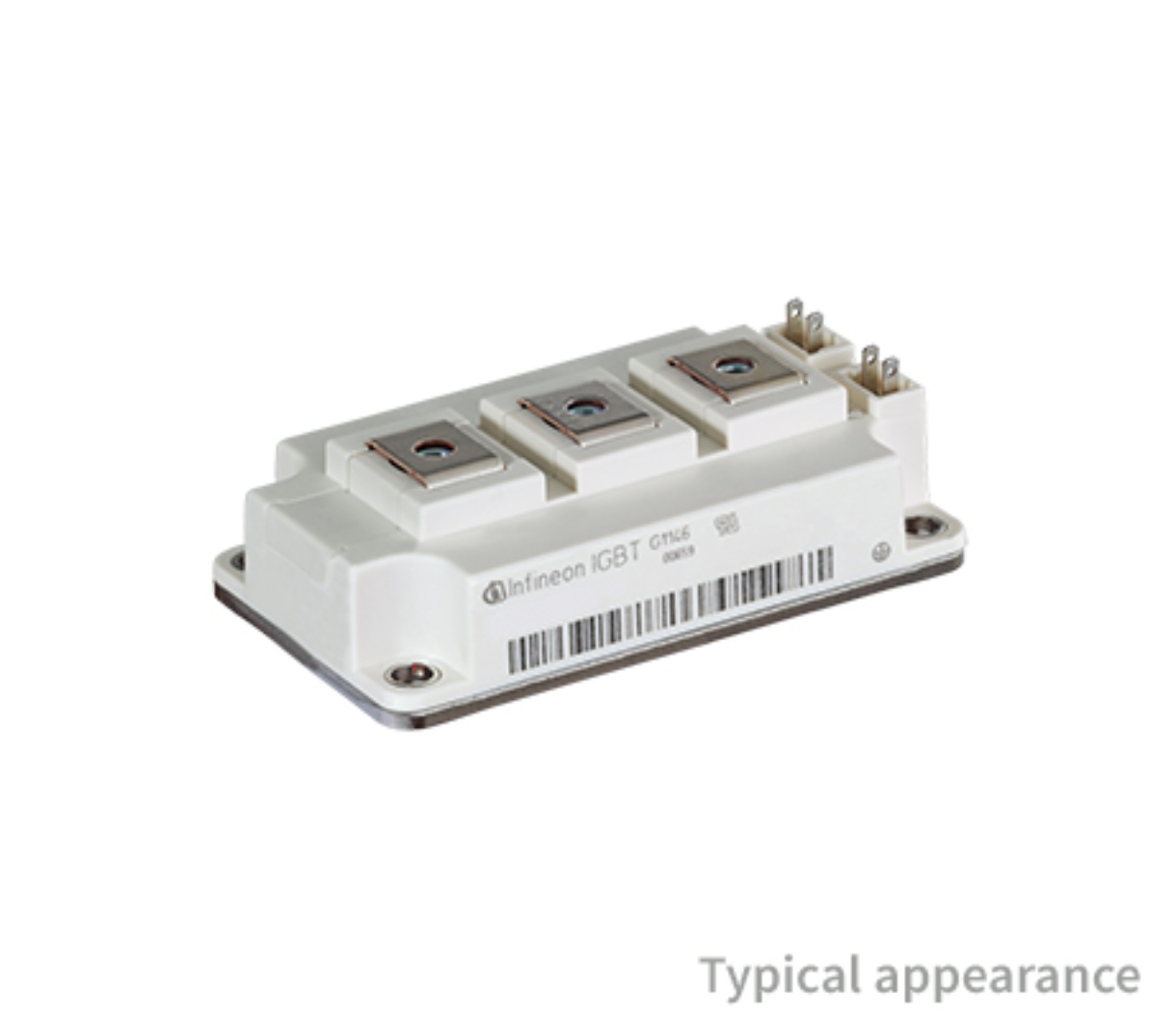

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Superior solution for frequency controlled inverter drives * UL/CSA Certification with UL1557 E83336 * Operating temperature up to 150 °C * Optimized switching characteristic like softness and reduced switching losses * Existing packages with higher current capability * RoHS compliant

Show

FF300R12KT4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	7 Pin
Case/Package	AG-62MM-1
Power Rating	1600 W
Number of Positions	7 Position
Polarity	NPN
Power Dissipation	1.6 kW
Breakdown Voltage (Collector to Emitter)	1200 V
Input Capacitance (Cies)	19nF @25V
Input Power (Max)	1600 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1600000 mW
	Show
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	New Product
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
