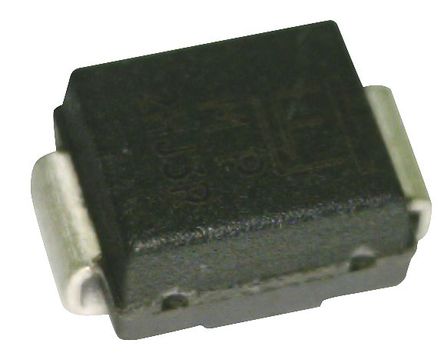

- SMBJ36A - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC867333
-
Category:TVS Diode
-
Package:DO-214AA
-
Datasheet:Datasheet 3D Model
-
Description:LITTELFUSE SMBJ36A TVS Diode, SMBJ Series, Unidirectional, 36V, 58.1V, DO-214AA, 2Pins
-
Stock Locations:
-
Availability:1,453 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.19
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SMBJ series surface-mount Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.
- 600W Peak pulse power capability at 10x1000µs waveform
- Built-in strain relief
- Glass passivated chip junction
- Low incremental surge resistance
- Excellent clamping capability
- 0.01% Repetition rate (duty cycle)
- <1ps from 0V to V(BR) Minimum fast response time
- <1µA above 12V Current IR
- Available in unidirectional and bidirectional
- ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
- EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
- -65 to 150°C Operating temperature range
SMBJ36A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AA |
| Voltage Rating (DC) | 35.0 V |
| Current Rating | 10.4 A |
| Power Rating | 600 W |
| Breakdown Voltage | 42.1 V |
| Number of Positions | 2 Position |
| Power Dissipation | 600 W |
| Clamping Voltage | 58.1 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 44.2 V |
| Forward Current | 10.4 A |
| Peak Pulse Power | 600 W |
| Min Breakdown Voltage | 40 V |
| Reverse Breakdown Voltage | 40 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | -65℃ ~ 175℃ |
| Junction Temperature (Max) | 150 ℃ |
| Show | |
| Size-Length | 4.57 mm |
| Size-Width | 3.94 mm |
| Size-Height | 2.237 mm |
| Operating Temperature | -65℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8541100080 |
| ECCN Code | EAR99 |
