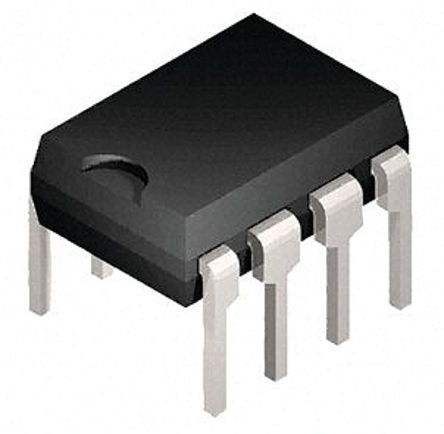

Image is for your reference only,please check specifications for details

FSQ0170RNA - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC82794219
Category:
AC to DC Converter, AC/DC Power Module
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
Fairchild Semiconductor FSQ0170RNA Intelligent Power Switch, PWM Controller, 2A, 14W, 8Pin, PDIP
Stock Locations:
Availability:
240 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.83

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FSQ0170RNA is an integrated current mode Pulse Width Modulator (PWM) and an avalanche-rugged 700V Sense FET. It is specifically designed for high-performance offline switch mode power supplies (SMPS) with minimal external components. The integrated PWM controller features a fixed-frequency generating oscillator, under-voltage lockout (UVLO) protection, leading edge blanking (LEB), an optimized gate turn-ON/OFF driver, thermal shutdown (TSD) protection and temperature compensated precision current sources for loop compensation and fault protection circuitry. Compared to a discrete MOSFET and controller or RCC switching converter solution, the FSQ0170RNA reduces total component count, design size and weight while increasing efficiency, productivity and system reliability. These devices provide a basic platform that is well suited for the design of fly-back converters, as in PC auxiliary power supplies.
Internal start-up circuit and built-in soft-start
Pulse-by-pulse current limiting and auto-restart mode
Over-voltage protection, overload protection and internal thermal shutdown function
Adjustable peak current limit
100kHz Precision fixed operating frequency

Show

FSQ0170RNA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	100 kHz
Power Rating	20 W
Number of Outputs	1 Output
Output Voltage	700 V
Output Current	800 mA
Breakdown Voltage	700 V
Supply Current	3 mA
Number of Positions	8 Position
Power Dissipation	1500 mW
Output Power	20 W
Switching Frequency	100 kHz
Duty Cycle	60 %
Input Voltage (AC Max)	265 v
Input Voltage (AC Min)	85 v
Output Current (Min)	0.7 A
Maximum Duty Cycle	65 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	1500 mW
Input Voltage	8V ~ 20V
	Show
Size-Length	10.15 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	-25℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
