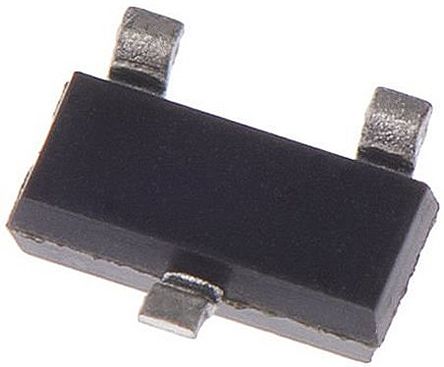

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDN352AP is a P-channel Logic Level MOSFET produced using Fairchild Semiconductor advanced Power Trench® process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance. This device is well suited for low voltage and battery powered applications where low in-line power loss is needed in a very small outline surface mount package.
High performance trench technology for extremely low RDS (on)

Show

FDN352AP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.18 Ω
Power Dissipation	0.5 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	30 V
Rise Time	15 ns
Input Capacitance (Ciss)	150pF @15V(Vds)
Input Power (Max)	460 mW
Fall Time	1 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	Show
Size-Length	2.92 mm
Size-Width	1.4 mm
Size-Height	0.94 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
