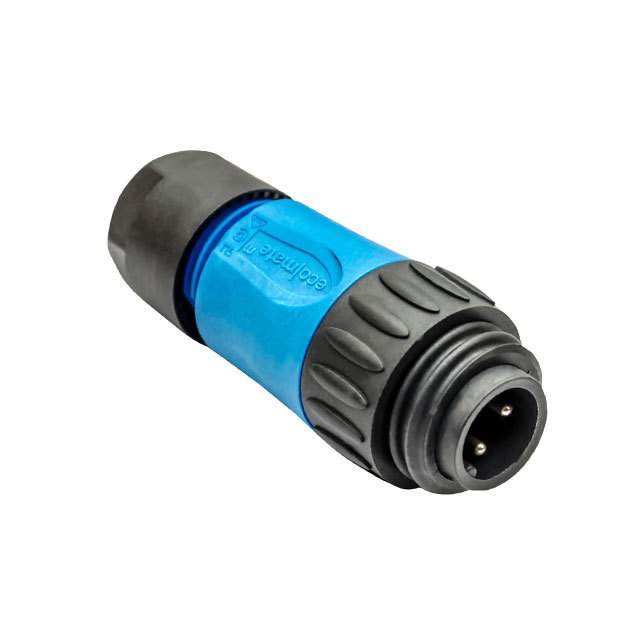

Image is for your reference only,please check specifications for details

C016 20H003 100 10 - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC13835729
Category:
Circular Connector, Connector Circular
Datasheet:
Datasheet 3D Model
Description:
connector, plastic circ, str male cable conn, 3+gnd silver plt cont, screw term, blue
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The C016 20H003 100 10 is a 3 + PE-position Male Cable Connector with silver-plated contacts, polyamide (PA 6/PA 6.6) housing and insert. 2.5mm² maximum wire gauge, screw termination and cable retention + clamping ring strain relief.
* >=10⁸R Insulation resistance
>=500 Mating cycles
IP65/67 Protection rating
UL94V-0 Flammability rating

Show

C016 20H003 100 10 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	4 Pin
Number of Contacts	4 Contact
Gender	Male
Contact Plating	Silver
Current Rating	16 A
Insulation Resistance	10.0 MΩ
Orientation	Straight
Flammability Rating	UL 94 V-0
Number of Positions	4 Position
Contact Resistance	5.00 mΩ
Number of Mating Cycles	500 Cycle
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	400 V
	Show
Size-Length	73 mm
Color	Blue
Operating Temperature	-40℃ ~ 100℃
Packaging	Bulk
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
