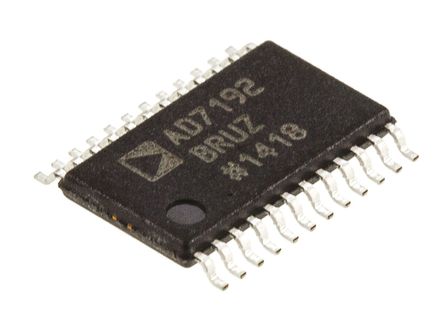

Image is for your reference only,please check specifications for details
- AD7192BRUZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC314178
-
Category:Analog to Digital, ADC IC
-
Package:TSSOP-24
-
Datasheet:Datasheet 3D Model
-
Description:Analog Devices AD7192BRUZ, 24Bit Serial ADC, 4Channel Differential Input, 24Pin TSSOP
-
Stock Locations:
-
Availability:222 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 124.14
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AD7192BRUZ is a 24-bit Ultralow Noise Sigma-Delta (Σ-Δ) ADC with PGA for high precision measurement applications. It contains a low noise, 24-bit Sigma-Delta (Σ-Δ) analogue-to-digital converter (ADC). The on-chip low noise gain stage means that signals of small amplitude can be interfaced directly to the ADC. The device can be configured to have two differential inputs or four pseudo differential inputs. The on-chip channel sequencer allows several channels to be enabled and the AD7192 sequentially converts on each enabled channel. It simplifies communication with the part. The on-chip 4.92MHz clock can be used as the clock source to the ADC or alternatively an external clock or crystal can be used. The output data rate from the part can be varied from 4.7Hz to 4.8kHz. The complete analogue front end device has two digital filter options.
- 5nV/°C Offset drift
- 1ppm/°C Gain drift
- 2 Differential/4 pseudo differential input channels
- Specified drift over time
- Automatic channel sequencer
- Programmable gain (1 to 128)
- Internal or external clock
- 4 General-purpose digital outputs
- ESD sensitive device, take proper precaution while handling the device.
AD7192BRUZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | TSSOP-24 |
| Supply Current | 4.00 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 24 Position |
| Number of Bits | 24 Bit |
| Power Dissipation | 27.5 W |
| Sample Rate | 4.8 ksps |
| Resolution (Bits) | 24.0 Bit |
| Number of ADCs | 1 ADC |
| Number of Inputs | 2, 4 Input |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 27.5 mW |
| Number of Input Channels | 4 Channel |
| Show | |
| Size-Length | 7.8 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
