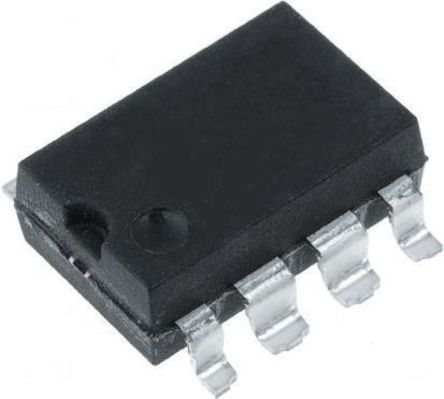

Image is for your reference only,please check specifications for details

6N137SDM - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC10953800
Category:
Optocoupler, Optoisolator
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR 6N137SDM Optocoupler, Digital Output, 1Channel, 2.5kV, 10Mbps, Surface Mount DIP, 8Pins
Stock Locations:
Availability:
1,061 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.68

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 6N137SDM is a 1-channel 10Mbps high-speed Logic Gate Optocoupler consists of a 850nm AlGaAS LED, optically coupled to a very high-speed integrated photo-detector logic gate with a strobable output. This output features an open collector, permitting wired OR outputs. The coupled parameters are guaranteed over wide temperature range. A maximum input signal of 5mA provided with a minimum output sink current of 13mA (fan out of 8). An internal noise shield provides superior common-mode rejection of typically 10kV/µs.
Fan-out of 8 over -40 to +85°C temperature range
Logic gate output
Strobable output
Wired OR-open collector

Show

6N137SDM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DIP-8
Rise/Fall Time	30ns, 10ns
Output Voltage	7.00 V
Output Current	0.05 A
Number of Channels	1 Channel
Number of Positions	8 Position
Forward Voltage	1.45 V
Input Current	15 mA
Power Dissipation	100 mW
Data Rate	10.0 Mbps
Rise Time	0.03 µs
Isolation Voltage	5000 Vrms
Forward Current	50 mA
Input Current (Min)	200 mA
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.75 V
Forward Current (Max)	50 mA
Fall Time	0.01 µs
Fall Time (Max)	75 ns
Fall Time (Max)	75 ns
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
Supply Voltage	4.5V ~ 5.5V
	Show
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
