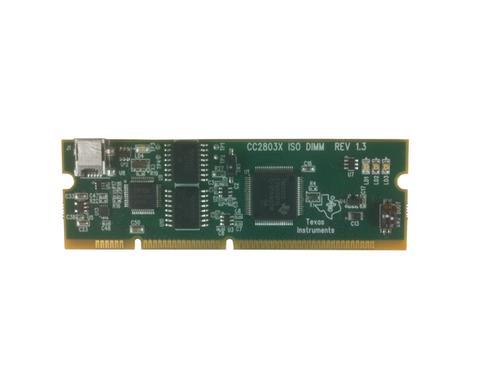

Image is for your reference only,please check specifications for details

TMDSCNCD28035ISO - TI
Manufacturer:
TI
ManyChip's Part#:
MC4487063
Category:
Microprocessor Primary Platform
Package:
Module
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TMDSCNCD28035ISO Piccolo Isolated USB controlCARD, F2805x Family MCU, C2000 controlCARD, 5V
Stock Locations:
Availability:
37 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 166.94

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TMDSCNCD28035ISO is a Piccolo TMS320F28035 Isolated controlCARD, the C2000 controlCARDs are ideal products for initial software development and short run builds for system prototypes, test stands, and many other projects that require easy access to high performance controllers. The controlCARDs are complete board level modules that utilise an industry standard DIMM form factor to provide a low profile single board controller solution. C2000 controlCARDs typically use the DIM100 connector footprint providing access to the analog and digital I/Os of the C2000 MCU, while likewise providing a standard for easy interchange of C2000 MCUs in an application.
Piccolo TMS320F28035 MCU
Isolated USB JTAG interface (XDS100v1)
Standard 100 pin DIMM interface
Analog I/O, digital I/O and JTAG signals at DIMM interface
Single 5V power rail for full operation

Show

TMDSCNCD28035ISO Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	Module
Core Architecture	C2000
Core Sub-Architecture	C2000
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	3A991.a.2
