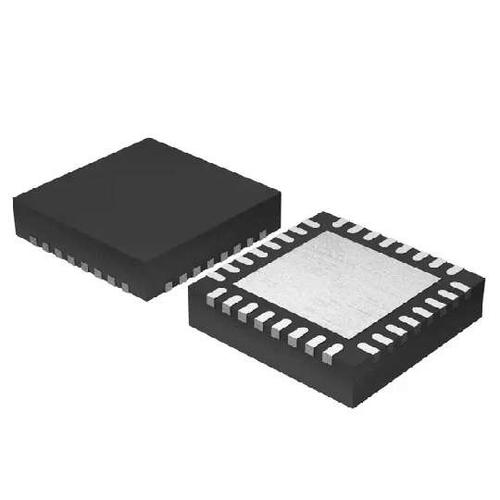

MSP430F1232IRHBR - TI
Manufacturer:
TI
ManyChip's Part#:
MC28415736
Category:
Microcontroller, MCU IC
Package:
QFN-32
Datasheet:
Datasheet 3D Model
Description:
16Bit Ultra-Low-Power Microcontroller, 8KB Flash, 256B RAM, 10Bit ADC, 1 USART 32-VQFN -40℃ to 85℃
Stock Locations:
Availability:
100 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.85

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MSP430F1232IRHBR is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6µs. The device configurations with 16-bit timer, 10-bit A/D converter with integrated reference and data transfer controller (DTC) and 22 general-purpose I/O pins. This device operates at a maximum frequency of 8MHz.
16-bit RISC architecture, 125ns instruction cycle time
Various internal resistors
Single external resistor
32kHz Crystal
High-frequency crystal
Resonator clock
External clock source
16-bit Timer_A with three Capture/Compare registers
10-bit 200ksps ADC with internal reference, sample-and-hold, autoscan and data transfer controller
Serial on-board programming
No external programming voltage needed
Programmable code protection by security fuse
Supply voltage brownout protection
Serial communication interface (USART) with software-selectable asynchronous UART or Synchronous SPI
200µA at 1MHz, 2.2V Active mode (AM) power consumption

Show

MSP430F1232IRHBR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	QFN-32
Frequency	8 MHz
Supply Voltage (DC)	3.30 V, 3.60 V (max)
Number of Positions	32 Position
Clock Speed	8.00 MHz
RAM Memory Size	256 b
Number of Bits	16 Bit
FLASH Memory Size	8 KB
Number of I/O Pins	22 IO
Access Time	8.00 µs
Core Architecture	MSP430
Number of UARTs	1 UART
Number of ADCs	1 ADC
FRAM Memory Size	0 B
Number of Inputs and Outputs	22 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	5 mm
Size-Width	5 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
