Description
- **1-Channel (Form A) Type Power PhotoMOS Relay**
- * A voltage sensitive power PhotoMOS
- * Extremely low ON resistance
- * Control low-level signal
- * Low-level off state leakage current
- * Both AC/DC dual types and DC-only types are available
- * Eliminates the need for a counterelectromotive protection diode in the drive circuit on the input side
- * Power Photo MOS relays feature extremely low closed-circuit offset voltage to enable control of low-level analog signals without distortion.

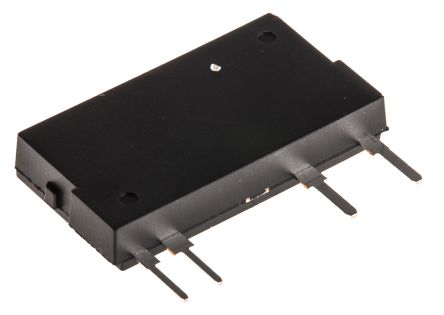

AQZ102 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Supply Voltage (DC) | 3.00 V |
| Current Rating | 4 A |
| Insulation Resistance | 1.00 GΩ |
| Capacitance | 1.5 pF |
| Power Rating | 1.35 W |
| Output Voltage | 0V ~ 60V |
| Output Current | 4000 mA |
| Contacts Type | SPST-NO |
| Load Current | 4 A |
| Input Current | 50 mA |
| Power Dissipation | 1600 mW |
| voltage rating | 1.50 V |
| Rise Time | 1.66 ms |
| Isolation Voltage | 2.5 kV |
| Forward Current | 1 mA |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 60 V |
| Output Current (Max) | 4 A |
| Input Current (Min) | 50 mA |
| Load Current (Max) | 4 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1600 mW |
| Voltage Rating | 60 VDC |
| Input Voltage | 1.16 VDC |
| Show | |
| Size-Length | 21 mm |
| Size-Width | 3.5 mm |
| Size-Height | 12.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
