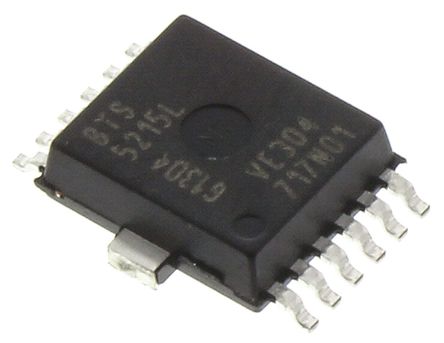

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Very low standby current
- CMOS Compatible input
- Improved electromagnetic compatibility (EMC)
- Fast demagnetization of inductive loads
- Stable behavior at undervoltage
- Wide operating voltage range
- Logic ground independent from load ground
- Benefits:
- High voltage capability
- Benchmark energy robustness
BTS5215L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 12 Pin |
| Case/Package | PG-DSO-12 |
| Power Rating | 3.1 W |
| Number of Outputs | 2 Output |
| Input Voltage (DC) | 16.0 V |
| Output Current | 3.7 A |
| Supply Current | 1.2 mA |
| Number of Channels | 2 Channel |
| Number of Positions | 12 Position |
| Power Dissipation | 3.1 W |
| Output Current (Max) | 3.7 A |
| Output Current (Min) | 3.7 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 3100 mW |
| Supply Voltage | 5.5.40 VDC |
| Supply Voltage (Max) | 40 V |
| Supply Voltage (Min) | 5.5 V |
| Input Voltage | 16 V |
| Show | |
| Size-Length | 6.4 mm |
| Size-Width | 7.5 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
