74279206 Wurth Elektronik GmbH & Co. KG, Germany. - Ferrites

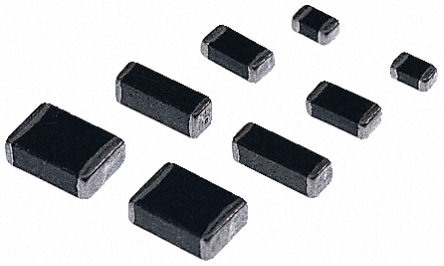

Image is for your reference only,please check specifications for details

74279206 - Wurth Elektronik GmbH & Co. KG, Germany.
Manufacturer:
Wurth Elektronik GmbH & Co. KG, Germany.
ManyChip's Part#:
MC31565304
Category:
Ferrites
Package:
0805
Datasheet:
Datasheet 3D Model
Description:
WURTH ELEKTRONIK 74279206 – ферритовый шарик для устранения электромагнитных помех, размер 0805, сопротивление 30 Ом, номинальный ток 3 А, сопротивление постоянного тока 0,025 Ом, отклонение ±25%.
Stock Locations:
Availability:
234 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.16

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

74279206 – это SMD-ферритовый шарик для устранения электромагнитных помех с корпусом размером 0805 и надежными электродами из никеля и свинца. Его можно напрямую установить на печатную плату. Устройство обладает отличными характеристиками противодействия электромагнитным помехам и низким сопротивлением постоянному току. Даже при минимальном размере 0402 возможно достижение максимального сопротивления в 1000 Ома на частоте 100 МГц. Рекомендуется использовать метод отплавки для пайки устройства.
Температурный диапазон эксплуатации: от -55°C до 125°C
Надежные электроды из никеля и свинца
Сопротивление на частоте 100 МГц варьируется от 5 Ома до 27 Коем
Номинальный ток от 50 мА до 6 А
Сопротивление постоянному току варьируется от 8 мОм до 1,5 Ома
Температурный диапазон эксплуатации: от -55°C до 125°C
Подходит для использования в процессе пайки методом отплавки

Show

74279206 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package (SI)	2012
Case/Package	0805
Current Rating	3 A
Resistance	25.0 mΩ
Test Frequency	100 MHz
DC Resistance (DCR)	≤25.00 mΩ
Current Rating (Max)	3 A
Current Rating (DC)	3 A
Resistance (DC Max)	0.025 Ω
	Show
Size-Length	2 mm
Size-Width	1.2 mm
Size-Height	0.9 mm
Material	Ferrite
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
