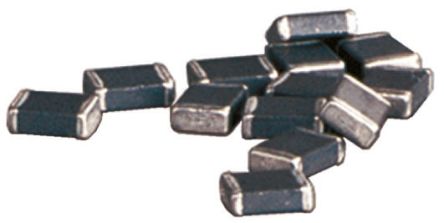

Image is for your reference only,please check specifications for details
- 74279244 - Wurth Electronics
-
Manufacturer:Wurth Electronics
-
ManyChip's Part#:MC14964983
-
Category:Ferrite
-
Package:1806
-
Datasheet:Datasheet 3D Model
-
Description:Ferrite Beads Multi-Layer 850Ω 25% 100MHz 1.5A 100mOhm DCR 1806 T/R
-
Stock Locations:
-
Availability:1,220 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.27
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The WE-CBF series from Wurth Elektronik are surface mount EMI suppression ferrite beads. These ferrite beads offer excellent anti EMI properties and low DC resistance. WE-CBF ferrite beads can be soldered directly on printed circuit board.
- EIA 0402, 0603, 0805, 1206, 1210, 1806, 1812 chip sizes available
- Reliable Ni-Sn electrodes
- Impedance at 100MHz ranges from 5ohm to 27Kohm
- Rated current rating from 50mA to 6A
- DC Resistance ranges from 8mohm to 1.5ohm
- Operating temperature range -55°C to 125°C
- Suitable for reflow soldering process
74279244 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 1806 |
| Current Rating | 1.5 A |
| Resistance | 100 mΩ |
| DC Resistance (DCR) | ≤100 mΩ |
| Current Rating (Max) | 1.5 A |
| Current Rating (DC) | 1.5 A |
| Resistance (DC Max) | 0.1 Ω |
| Show | |
| Size-Length | 4.5 mm |
| Size-Height | 1.6 mm |
| Material | Ferrite |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
