Description

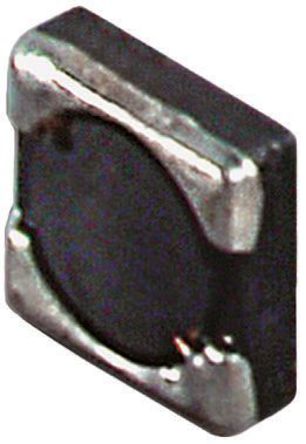

Wurth Electronics WE-TPC series are SMD shielded tiny power inductors with a 4 pad design which provides great mechanical strength. Compared to the unshielded types, the WE-TPC series reduces stray field due to the magnetic shielding.
Extremely flat power inductor
High current capability
Magnetically shielded which results in a low leakage field
Recommended solder profile: Reflow
Operating temperature: -40°C to +125°C

Show

744053006 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	5.8mm x 5.8mm x 2.8mm
Current Rating	2.2 A
Capacitance Tolerance	±30 %
Inductance	6.2 µH
Self Resonant Frequency	38 MHz
Part Family	WE-TPC
Resonant Frequency	38 MHz
Inductance Tolerance	±30 %
Test Frequency	100 kHz
DC Resistance (DCR)	≤45.00 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.045 Ω
	Show
Size-Length	5.8 mm
Size-Height	2.8 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
