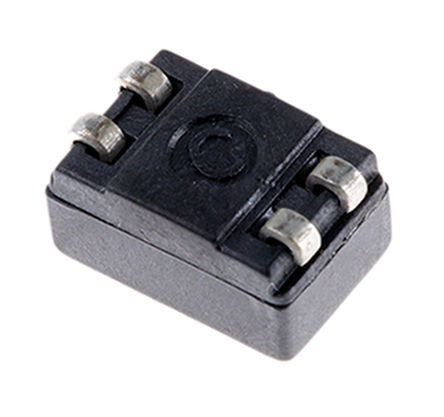

Image is for your reference only,please check specifications for details

744224 - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC5065753
Category:
Inductor Choke
Package:
9.2mm x 6mm x 5mm
Datasheet:
Datasheet 3D Model
Description:
WURTH ELEKTRONIK 744224 Filter, Line, Surface Mount, 250μH, WE-SL2 Series, 1.8KΩ, 1.2A, 9.2mm x 6mm x 5mm
Stock Locations:
Availability:
3,087 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.69

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 744224 is a 1.2A SMD common mode Line Filter with reflow solder profile and bifilar winding style. The WE-SL2 series filter is suitable for suppression of common mode noise.
-40 to 125°C Operating temperature range

Show

744224 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	9.2mm x 6mm x 5mm
Voltage Rating (DC)	80 V
Current Rating	1.2 A
Capacitance Tolerance	±50 %
Inductance	250 µH
Resistance	130 mΩ
Test Frequency	100 kHz
DC Resistance (DCR)	≤130 mΩ
Current Rating (Max)	1.2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	80 V
Resistance (DC Max)	130 mΩ
	Show
Size-Length	9.2 mm
Size-Width	6 mm
Size-Height	5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
