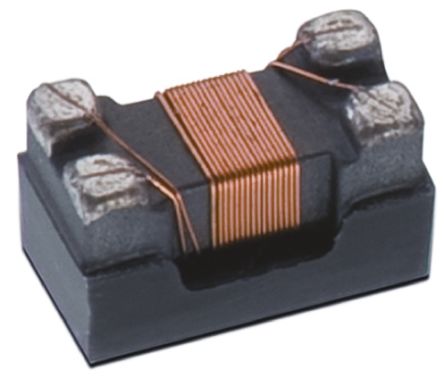

Image is for your reference only,please check specifications for details
- 744231121 - Wurth Elektronik GmbH & Co. KG, Germany.
-
Manufacturer:Wurth Elektronik GmbH & Co. KG, Germany.
-
ManyChip's Part#:MC18848017
-
Category:Inductor Chokes
-
Package:0805
-
Datasheet:Datasheet 3D Model
-
Description:Фильтр помех в общем режиме, установленный на поверхности (SMD), размер 2012(0805), напряжение 50В, ток 370mA, импеданс (100МГц) 120Ом, стандарты USB2.0, Firewire/IEEE1394, LVDS; используется для высокоскоростных данныхых линий; диапазон рабочих температур от -40°C до +125°C.
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 744231121 – это фильтр помех в общем режиме с током 370mA, установленный на поверхности по технологии плавления свинцового покрытия. Фильтры серии WE-CNSW обладают высокой способностью подавления помех в общем режиме при высоких частотах и минимальным влиянием на высокоскоростные сигналы благодаря симметрии конструкции.
- Диапазон рабочих температур от -40°C до 125°C
744231121 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Voltage Rating (DC) | 50 V |
| Current Rating | 370 mA |
| Capacitance Tolerance | ±25 % |
| Resistance | 300 mΩ |
| Test Frequency | 100 MHz |
| DC Resistance (DCR) | ≤300 mΩ |
| Current Rating (Max) | 370 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 50 V |
| Resistance (DC Max) | 300 mΩ |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.2 mm |
| Size-Height | 1.2 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
