744235220 - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC25604668
Category:
Inductor Choke
Package:
1812
Datasheet:
Datasheet 3D Model
Description:

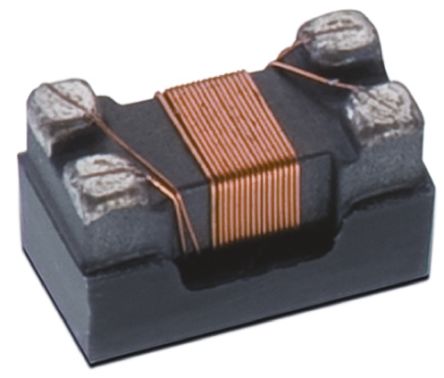

WURTH ELEKTRONIK 744235220 Filter, Line, Common Mode, 22μH, WE-CNSW Series, 8KΩ, 250mA, 4.5mm x 3.2mm x 2.8mm
Stock Locations:
Availability:
295 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.26

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The great advantage of Wurth Electronics WE-CNSW series is the high suppression of common mode EMI noise at high frequencies, while not influencing the data signal of the interface. Wurth Electronics offers standard WE-CNSW and WE-CNSW High Frequency (HF) series. The WE-CNSW filters are available in package sizes: 0603, 0805, 1206 and 1812 with an ideal operating frequency range of 10MHz up to 1GHz. The WE-CNSW HF filters are available in package sizes 0504 and 0805 with an ideal operating frequency range of 100MHz up to 4GHz.
Current compensated data line filter
High common mode noise suppression at high frequencies
Small influence on high speed signals through winding symmetry
Recommended solder profile: Reflow
Operating temperature: -40°C to +125°C
IEEE 1394 (Firewire)

Show

744235220 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	1812
Voltage Rating (DC)	60 V
Current Rating	250 mA
Inductance	22 µH
Current Rating (Max)	250 mA
Current Rating (DC)	250 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	50 V
Resistance (DC Max)	2.65 Ω
	Show
Size-Length	4.5 mm
Size-Width	3.2 mm
Size-Height	2.8 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
