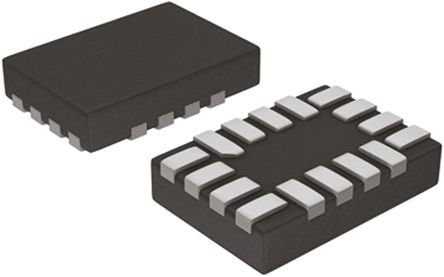

- SN74AVC4T245RSVR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC597488
-
Category:Voltage Level Translator IC
-
Package:UQFN-16
-
Datasheet:Datasheet 3D Model
-
Description:Bus Transceiver, AVC Family, 4Input, 50mA, 3.1ns, 1.2V to 3.6V, UQFN-16
-
Stock Locations:
-
Availability:1,751 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.9
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SN74AVC4T245RSVR is a 4-bit dual-supply Bus Transceiver with configurable voltage-level shifting and 3-state outputs. It uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 to 3.6V. It is operational with VCCA/VCCB as low as 1.2V. This allows for universal low-voltage bidirectional translation between any of the 1.2, 1.5, 1.8, 2.5 and 3.3V voltage nodes. It is designed for asynchronous communication between two data buses. The logic levels of the direction-control input and the OE\ input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated and from the B bus to the A bus when the A-port outputs are activated.
- Fully configurable dual-rail design
- Ioff Supports partial power-down-mode operation
- Maximum data rates
- Latch-up performance exceeds 100mA per JESD, 78 class II
- Green product and no Sb/Br
SN74AVC4T245RSVR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | UQFN-16 |
| Supply Voltage (DC) | 1.20V ~ 3.60V |
| Operating Voltage | 1.2V ~ 3.6V |
| Output Current | 50 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 16 Position |
| Number of Bits | 4 Bit |
| Propagation Delay Max (tpd) | 2.90 ns |
| Voltage Nodes | 3.30 V, 2.50 V, 1.80 V, 1.50 V, 1.20 V |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Output Channels | 1 Channel |
| Supply Voltage | 1.2V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.2 V |
| Show | |
| Size-Length | 2.65 mm |
| Size-Width | 1.85 mm |
| Size-Height | 0.5 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
