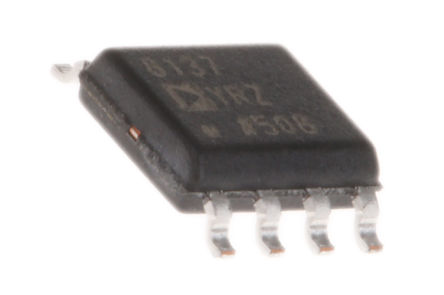

Image is for your reference only,please check specifications for details

AD8137YRZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC246847
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8137YRZ Differential Amplifier, ADC Driver, 1 Amplifiers, 2.6mV, 1.008dB, 110MHz, -40℃, 125℃
Stock Locations:
Availability:
260 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.87

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8137YRZ is a Low Power Differential ADC Driver with a rail-to-rail output that is ideal for driving ADCs in systems that are sensitive to power. It is easy to apply and its internal common-mode feedback architecture allows its output common-mode voltage to be controlled by the voltage applied to one pin. The internal feedback loop also provides inherently balanced outputs as well as suppression of even-order harmonic distortion products. Fully differential and single-ended-to-differential gain configurations are easily realized by the AD8137. External feedback networks consisting of four resistors determine the closed-loop gain of the amplifier. The power-down feature is beneficial in critical low power applications. This ADC driver is manufactured on proprietary second-generation XFCB process, enabling it to achieve high levels of performance with very low power consumption.
High speed
Extremely low power with power-down feature
2.6mA Quiescent supply current at 5V
450µA in power-down mode at 5V
12-bit SFDR performance at 500kHz
100ns to 0.02% fast settling time
±2.6mV Maximum low input offset voltage
0.45µA Maximum low input offset current
Differential-to-differential or single-ended-to-differential operation
Adjustable output common-mode voltage
Externally adjustable gain
ESD sensitive device, take proper precaution while handling the device.

Show

AD8137YRZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Output Current	20mA @5V
Supply Current	3.2 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Number of Bits	12 Bit
Common Mode Rejection Ratio	62 dB
Bandwidth	110 MHz
Slew Rate	450 V/μs
Gain	1.00 dB
Input Offset Voltage	2.6 mV
Input Bias Current	500 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	110 MHz
Minimum CMRR Range	62 dB
Supply Voltage	2.7V ~ 6V
Supply Voltage (Max)	10V ~ 15V
Supply Voltage (Min)	3 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
