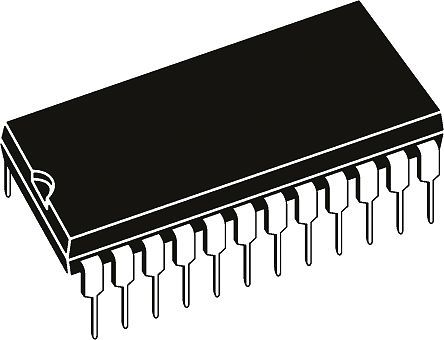

Image is for your reference only,please check specifications for details

L6208N - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC3460240
Category:
Motor Driver
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L6208N Motor Driver/Controller, Stepper, 8V to 52V supply, 52V/7.1A/4Outputs, DIP-24
Stock Locations:
Availability:
230 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.17

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6208N is a Highly Integrated Mixed-signal Power IC that allows the user to easily design a complete motor control system for 2-phase bipolar stepper motors. The IC integrates eight power DMOS, a centralized logic circuit which implements the phase generation and a constant tOFF PWM current control technique (Quasi-Synchronous mode) for each of the two phases of the motor plus other added features for safe operation and flexibility.
Operating supply voltage from 8 to 52V
5.6A Output peak current (2.8A RMS)
Operating frequency up to 100kHz
Non-dissipative overcurrent protection
Fast/slow decay mode selection
Fast decay quasi-synchronous rectification
Decoding logic for stepper motor full and half step drive
Cross conduction protection
Thermal shutdown
Under voltage lockout
Integrated fast freewheeling diodes
ESD sensitive device, take proper precaution while handling the device.

Show

L6208N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	24 Pin
Case/Package	DIP-24
Supply Voltage (DC)	52.0V (max)
Number of Outputs	4 Output
Output Voltage	52 V
Output Current	7.1 A
Supply Current	10.0 mA
Number of Channels	4 Channel
Number of Positions	24 Position
Switching Frequency	100 kHz
Output Voltage (Max)	60 V
Output Current (Max)	2.8 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8V ~ 52V
Supply Voltage (Max)	52 V
Supply Voltage (Min)	8 V
	Show
Size-Length	15.6 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
