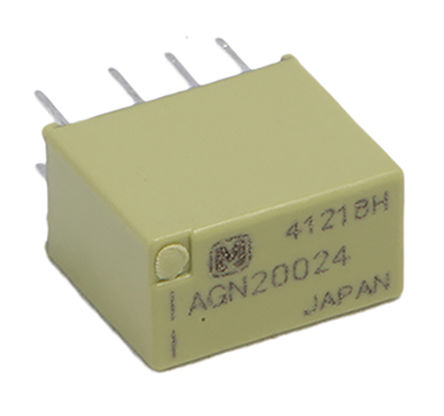

AGN20024 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC3028782
Category:
Industrial Relay
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Electromechanical Relay 24VDC 2.504KΩ 1A DPDT(10.6mm 5.7mm 9mm) THT General Purpose Relay
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 03/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

1 A Rated Current, 110 VDC, 125 VAC Voltage Rating, 2 Form C Contact, Slim Polarized Relay
* Compact slim body saves space
* Outstanding surge resistance
* The use of twin crossbar contacts ensures high contact reliability
* Increased packaging density
* Nominal operating power 140 mW
* Outstanding vibration and shock resistance
AgPd + Au Clad (stationary), AgPd (movable) contact material. 0.417 in. +/- 0.012 in. L x 0.224 in. +/- 0.12 in. W x 0.354 in. +/- 0.12 in. H dimensions. UR recognized, CSA certified, BSI testing.

Show

AGN20024 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP
Voltage Rating (DC)	110 V
Voltage Rating (AC)	125 V
Current Rating	1 A
Power Rating	30 W
Contacts Type	DPDT
Contact Current Rating	1 A
Coil Voltage	24 VDC
Coil Current	9.6 mA
Coil Resistance	2.504 kΩ
Carry Current	1.00 A
Current Rating (Max)	1 A
Coil Voltage (DC)	24 V
Coil Power	230 mW
Input Power (Max)	30W, 37.5VA
Switching Current (Max)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	125 VAC
	Show
Size-Length	10.6 mm
Size-Width	5.7 mm
Size-Height	9 mm
Contact Material	Silver Palladium
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536490050
ECCN Code	EAR99
