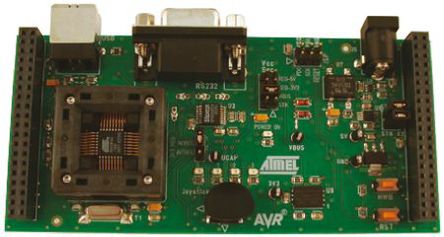

Image is for your reference only,please check specifications for details

ATSTK526 - ATMEL
Manufacturer:
ATMEL
ManyChip's Part#:
MC99006996
Category:
Microprocessor Primary Platform
Package:
Module
Datasheet:
Datasheet 3D Model
Description:
ATMEL ATSTK526 Starter Kit, USB Low Power Bus Powered Device, X-Y Movement, Left Button Supported
Stock Locations:
Availability:
303 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 206.96

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ATSTK526 starter kit is designed for Atmel AT90USB82/162 and ATmega8U2/16U2/32U2 microcontrollers. It supports JTAGICE mkII and AVRISP mkII via AVR studio and includes a number demonstration programs with source and hex files. The parts can be directly programmed through a USB port with FLIP ISP utility. The STK526 dedicated to the AT90USB82/162 AVR microcontroller. This board is designed to allow an easy evaluation of the product using demonstration software. The STK526 can be plugged into the Atmel STK500 starter kit board in order to use the AT90USB82/162 with advanced features such as variable VCC, variable XTAL, Parallel programming, and supports all AVR development tools. To increase its demonstrative capabilities, this stand alone board has several on board resources USB, RS232, joystick, data-flash, LED"s.
AT90USB82/162 TQFP device (2.7V<Vcc<5.5V)
AVR studio software interface
USB software interface for device firmware upgrade (DFU bootloader)
STK500 compatible (supports parallel high voltage programming)
ISP connector for on chip ISP and for on chip debugging using JTAG ICE and debug Wire protocol
One USB full speed device interface and RS232C ports with RTS/CTS handshake lines
On board resources of 4ways + 1select joystick, 4 LED"s, serial 8Mo data flash memory
On board reset button
On board HWB button for force bootloader execution at reset
Numerous access points for test

Show

ATSTK526 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	Module
Core Architecture	AVR
	Show
Product Lifecycle Status	Obsolete
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
