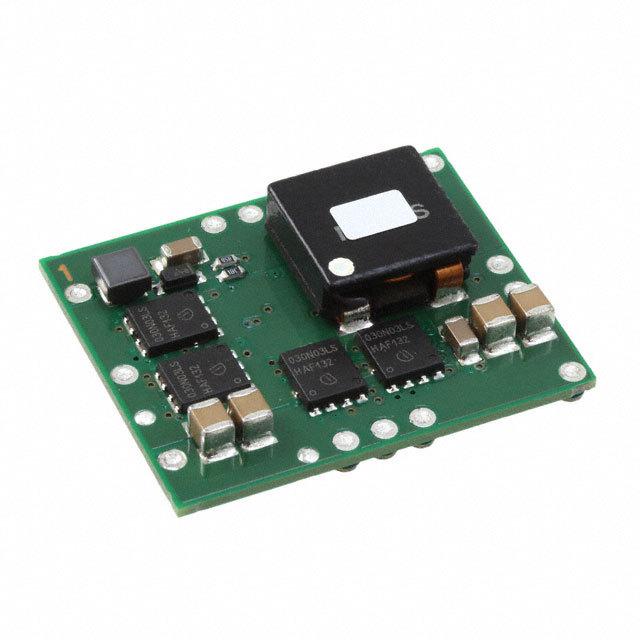

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PTH03030 is a high-current non-isolated power module from Texas Instruments. The product is characterized by high efficiencies, and up to 30 A of output current, while occupying a mere 1.64 in² of PCB area. In terms of cost, size, and performance, the PTH03030 provides OEMs with a flexible module that meets the requirements of the most complex and demanding mixed-signal applications. These include the most densly populated, multi-processor systems that incorporate high-speed DSPs, microprocessors, and ASICs.
- The series uses double-sided surface mount construction and provides high-performance step-down power conversion from a 3.3-V input bus voltage. The output voltage of the PTH03030W can be set to any value over the range 0.8 V to 2.5 V, using a single resistor.
- This series includes Auto-Track. Auto-Track simplifies power-up and power-down supply voltage sequencing in a system by enabling modules to track each other, or any other external voltage.
- Each model also includes an on/off inhibit, output voltage adjust (trim), and margin up/down controls. An output voltage sense ensures tight load regulation, and an output over-current and thermal shutdown feature provide for protection against external load faults.
- Package options inlude both through-hole and surface mount connfigurations.
PTH03030WAZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 13 Pin |
| Case/Package | SMD-13 |
| Supply Voltage (DC) | 3.30 V |
| Power Rating | 75 W |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 2.95V ~ 3.65V |
| Output Voltage | 0.8V ~ 2.5V |
| Output Current | 30 A |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 275kHz ~ 325kHz |
| Topology | Buck |
| Input Voltage (Max) | 3.65 V |
| Input Voltage (Min) | 2.95 V |
| Output Current (Max) | 30 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 2.95V ~ 3.65V |
| Show | |
| Size-Length | 34.8 mm |
| Size-Width | 28.5 mm |
| Size-Height | 8.75 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
