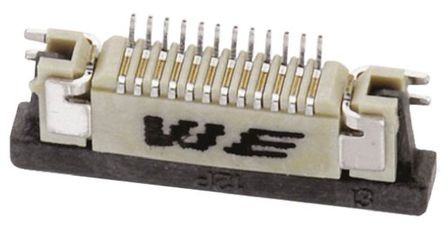

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 68711014522 is a 10-way 1-row ivory surface-mount horizontal bottom ZIF Connector, 0.5mm pitch. This WR-FPC series connector with tin-plated phosphor bronze contacts, LCP insulator, LCP actuator. It mates with 6876xxxxx002 and 6877xxxxx002.
- 0.5A Current rating
- 50VAC Voltage rating
- UL94V-0 Flammability rating
- Don"t pull the actuator too far otherwise the stop limit (hook on actuator) may be broken, don"t keep conductor toward actuator, don"t keep FFC inclined when insertion.
68711014522 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Contacts | 10 Contact |
| Gender | Male |
| Contact Plating | Tin, Tin over Nickel |
| Current Rating | 500 mA |
| Insulation Resistance | 100 MΩ |
| Number of Rows | 1 Row |
| Number of Positions | 10 Position |
| Number of Mating Cycles | 25 Cycle |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 25 ℃ |
| Voltage Rating | 50 V |
| Show | |
| Housing Color | Cream |
| Contact Material | Phosphor Bronze |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
