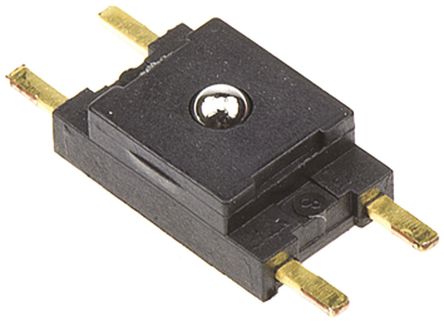

Image is for your reference only,please check specifications for details

FSS1500NSB - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC10112875
Category:
Pressure Sensor
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
HONEYWELL FSS1500NSB Force Sensor, Low Profile, FSS Series, 1.5kg, 5VDC, -40℃ to 85℃
Stock Locations:
Availability:
27 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 147.36

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FSS1500NSB from Honeywell is a low profile force sensor. The sensor provides precise reliable force sensing performance in a compact commercial grade package at a cost effective price. The sensor features a proven sensing technology that uses a specialized piezoresistive micromachined silicon sensing element. The low power, unamplified, uncompensated wheatstone bridge circuit design provides inherently stable mV outputs over the 1,500 gram force range. Force sensors operate on the principle that the resistance of silicon-implanted piezoresistors will increase when the resistors flex under any applied force. The sensor concentrates force from the application through the stainless steel ball directly to the silicon sensing element. The amount of resistance changes in proportion to the amount of force being applied. This change in circuit resistance results in a corresponding mV output level change.
Robust performance characteristics
Precision force sensing
Reliability rated at 20 million MCTF at 25 °C
Electrically ratiometric output
Extremely low deflection (30microns typical at Full Scale)
High ESD resistance 8 kV
Operating temperature range from -40°C to 85°C
True surface mount technology
Maximum peak reflow temperature of 260°C
Adaptable package design
Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.

Show

FSS1500NSB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SMD
Supply Voltage (DC)	5.00 V, 12.0 V (max)
Output Voltage	0.5V ~ 4.5V
Input Impedance	5 kΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	0.5 %
Supply Voltage	5 VDC
Supply Voltage (Max)	12 VDC
	Show
Size-Length	9.14 mm
Size-Width	0.22 mm
Size-Height	3.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	9031808085
ECCN Code	EAR99
