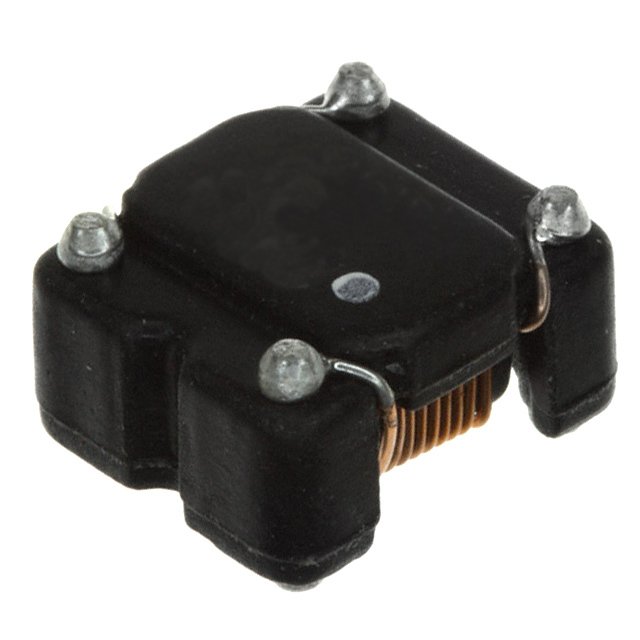

Image is for your reference only,please check specifications for details

744272472 - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC28731819
Category:
Filter
Package:
10mm x 8.7mm x 6.5mm
Datasheet:
Datasheet 3D Model
Description:
WURTH ELEKTRONIK 744272472 Filter, Line, Surface Mount, 4.7mH, WE-SL5 Series, 13KΩ, 350mA, 10mm x 8.7mm x 6.5mm
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

4.7mH @ 100kHz 2 Line Common Mode Choke Surface Mount 13 kOhms @ 1MHz 350mA DCR 720mOhm

Show

744272472 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	10mm x 8.7mm x 6.5mm
Voltage Rating (DC)	80 V
Current Rating	350 mA
Capacitance Tolerance	±40 %
Inductance	4.7 mH
Test Frequency	100 kHz
DC Resistance (DCR)	≤720 mΩ
Current Rating (Max)	350 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	80 V
Resistance (DC Max)	720 mΩ
	Show
Size-Length	8.7 mm
Size-Width	10 mm
Size-Height	6.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
