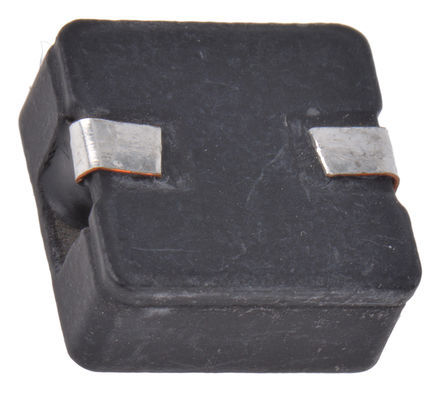

Image is for your reference only,please check specifications for details
- 744311330 - Wurth Electronics
-
Manufacturer:Wurth Electronics
-
ManyChip's Part#:MC2193700
-
Category:Inductor
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:Power Choke Shielded Wirewound 3.3uH/2.75uH 20% 100kHz 6.5A 17.2mOhm DCR T/R
-
Stock Locations:
-
Availability:1,385 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.67
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Wurth Electronics WE-HCI series is known within the electronics market to be the top of the line, high-current inductor family. Due to increased demand for smaller packages in even higher currents, Wurth Electronics offers numerous sizes ranging from 5x5x4 mm up to 22x22x12 mm, thus allowing you to find the optimum size for your circuit design. The high-current flat wire inductors offer the industry"s lowest DCRs for maximum performance in your DC/DC converter.
- Magnetically shielded
- Flat wire coil for low losses at high frequency
- Low stray field
- Operating temperature: -40°C to +125°C / +150°C / +155°C
- Recommended solder profile: Reflow
744311330 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD |
| Current Rating | 6.5 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 3.3 µH |
| Self Resonant Frequency | 43 MHz |
| Part Family | WE-HCI |
| Resistance | 17.2 mΩ |
| Resonant Frequency | 43.0 MHz |
| Inductance Tolerance | ±20 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | 17.2 mΩ |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.0172 Ω |
| Show | |
| Size-Length | 7 mm |
| Size-Width | 6.9 mm |
| Size-Height | 3.8 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
