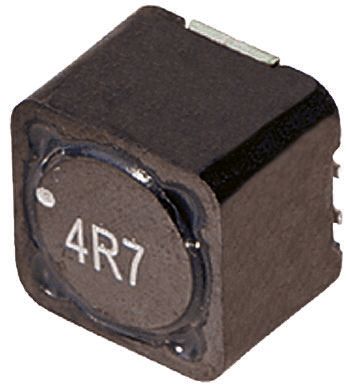

Image is for your reference only,please check specifications for details
- 744770115 - Wurth Electronics
-
Manufacturer:Wurth Electronics
-
ManyChip's Part#:MC32090736
-
Category:Inductor
-
Package:Nonstandard
-
Datasheet:Datasheet 3D Model
-
Description:Power Choke Shielded Wirewound 15uH 20% 1kHz Ferrite 5A 27mOhm DCR T/R
-
Stock Locations:
-
Availability:294 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.96
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The Wurth Elektronik WE-PD series are magnetic shielded power inductors. The inductance value ranges from 0.47µH to 1500µH.
- EIA 7332, 7345, 1030, 1050, 1245, 1260, 1280, 1210, 6033, 6050 case sizes available
- Magnetic shielding results in low leakage field
- High storage capacity
- Low self losses
- Highest possible current loading
- Operating temperature range -40°C to 125°C
- Suitable for reflow soldering process
- Available in metal and plastic base
744770115 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | Nonstandard |
| Current Rating | 5 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 15 µH |
| Self Resonant Frequency | 14.5 MHz |
| Part Family | WE-PD |
| Resistance | 24.0 mΩ |
| Resonant Frequency | 14.5 MHz |
| Inductance Tolerance | ±20 % |
| Test Frequency | 1 kHz |
| DC Resistance (DCR) | ≤27 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.027 Ω |
| Show | |
| Size-Length | 12 mm |
| Size-Width | 12 mm |
| Size-Height | 8 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
