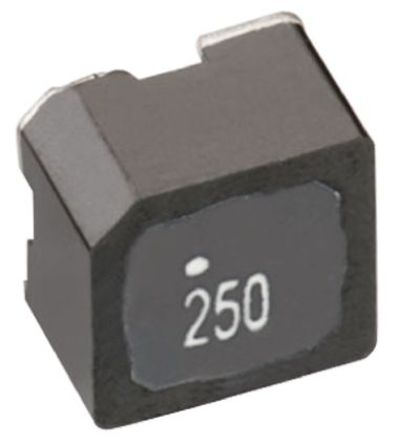

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 74488540070 is an energy harvesting Coupled Inductor with Very low secondary RDC. This WE-EHPI low profile inductor is available with multiple options of turn ratios. This inductor features separated welding/soldering pads for increased reliability and optimized winding technology for increased performance and reliability. It is recommended that the temperature of the inductor does not exceed 125°C under worst case operating conditions.
- 3°C/s Maximum ramp-up rate
- 6°C/s Maximum ramp-down rate
- Cleaning agents that are used to clean application might damage or change the characteristics of the component, body, pins or termination.
74488540070 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 6mm x 6mm x 4mm |
| Current Rating | 1.9 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 7 μH |
| Part Family | WE-EHPI |
| Inductance Tolerance | ±20 % |
| DC Resistance (DCR) | 0.095 Ω |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 240 Ω |
| Show | |
| Size-Length | 6 mm |
| Size-Height | 4 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/06/16 |
